1kV 10kV 35kV Heat Shrink Busbar Insulation Tubing
✅High Dielectric Strength
✅Thick-Walled Design
✅Heat-Activated Shrinkage
✅Environmental Resistance
✅Flame Retardancy
- Product Introduction

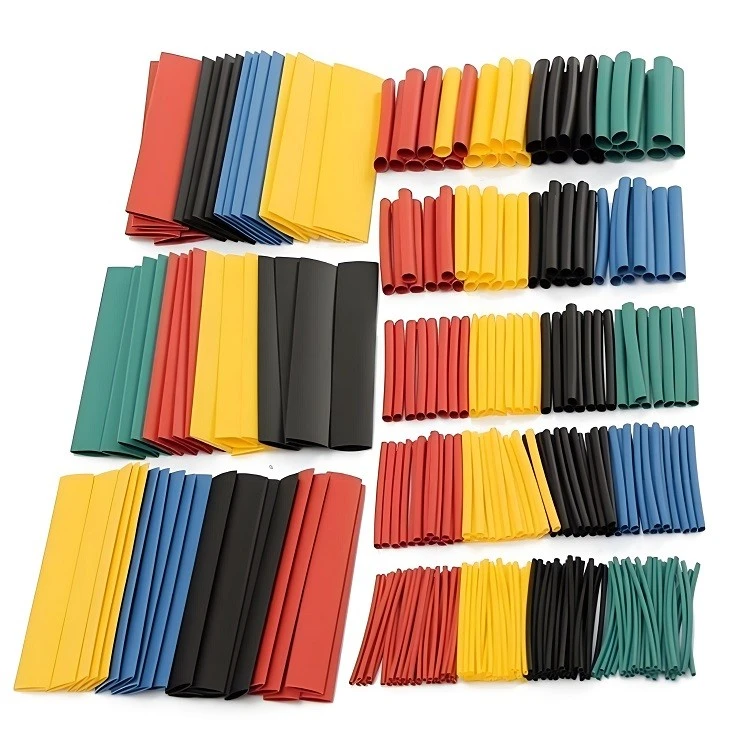

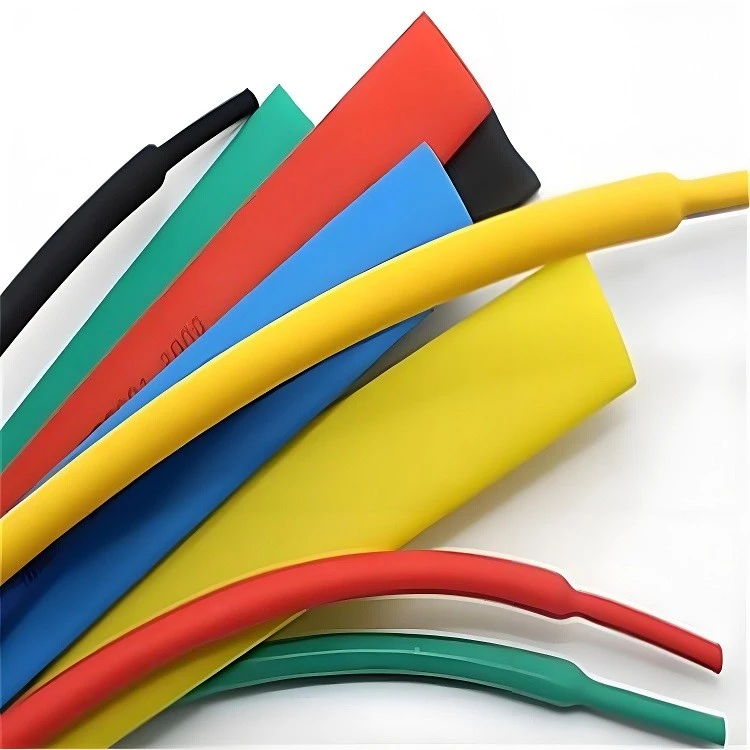

Jinneng electrical 1kV 10kV 35kV heat shrink busbar insulation tubing is a thick-walled, heat-shrinkable polymer tube designed to provide electrical insulation, mechanical protection, and environmental sealing for copper or aluminum busbars. When heated, it shrinks tightly around the busbar, act as the protection layer.
● High Dielectric Strength
Withstands high voltages (1kV to 10kV+), preventing electrical leakage and short circuits.
● Thick-Walled Design
Provides enhanced mechanical durability against abrasion, impact, and corrosion.
● Heat-Activated Shrinkage
Shrinks instantly (typically 50% shrinkage ratio) to conform tightly to irregular busbar shapes.
● Environmental Resistance
Resists moisture, chemicals, UV radiation, and extreme temperatures (-55°C to 135°C).
● Flame Retardancy
Complies with UL/VDE standards for fire safety in electrical applications.
Key Parameters
| Category | Specific Parameter | Typical Value / Description |
|---|---|---|
| Electrical Properties | Dielectric Strength | ≥ 15 kV/mm or Rated Voltage (600V, 1kV, 10kV,35kV) |
| Volume Resistivity | ≥ 10¹³ Ω·cm | |
| Mechanical Properties | Tensile Strength (As supplied) | ≥ 10.4 MPa |
| Tensile Strength (After shrinkage) | ≥ 14.5 MPa | |
| Elongation at Break | ≥ 200% | |
| Thermal Properties | Minimum Shrink Temperature | ≥ +70°C |
| Full Recovery Temperature | ≈ +125°C | |
| Operating Temperature Range | -55°C to +125°C (Standard) | |
| Temperature Rating | +135°C (Common) | |
| Environmental Properties | Chemical Resistance | Resists acids, alkalis, oils, and common solvents |
| UV Resistance | Excellent (especially black tubes) | |
| Dimensional | Shrink Ratio | 2:1, 3:1, 4:1 |
| Standard Colors | Black (most common), red, yellow, green, blue, green-yellow |
Above parameter for reference only,the final interpretation rights belong to the company.for detail product data,pls contact us
Product Models
| Name | Image | Diameter | Cable Cross-Section (mm²) | Unit | Insulation Tube Length (mm) |
|---|---|---|---|---|---|
| 1KV Insulation Tubing |
|
Φ12 | 10-16 | Root | 600 650 800 1000 |
| Φ18 | 25-50 | ||||
| Φ28 | 70-120 | ||||
| Φ36 | 150-240 | ||||
| Φ42 | 300-500 | ||||
| 10KV Insulation Tubing |  |
Φ28 | 25-50 | ||
| Φ36 | 70-120 | ||||
| Φ42 | 150-240 | ||||
| Φ50 | 300-500 | ||||
| Φ60 | 50-120 | ||||
| Φ70 | 150-240 | ||||
| Φ80 | 300-500 | ||||
| 35KV Insulation Tubing |  |
Φ28 | 25-50 | ||
| Φ36 | 70-120 | ||||
| Φ42 | 150-240 | ||||
| Φ50 | 300-500 | ||||
| Φ60 | 50-120 | ||||
| Φ70 | 150-240 | ||||
| Φ80 | 300-500 |
Contact us if customization
Selection Guide
1. Voltage Rating
Choose based on operational voltage (600V, 1kV, 10kV,35kV).
2. Busbar Dimensions
Choose inner diameter to fit the busbar's widest point (typically 1.2-1.5x larger).
3. Material Compatibility
Ensure compatibility with copper/aluminum and operational environment (oil-resistant, UV-stable).
4. Certifications
With UL, VDE, RoHS, or IEC standards compliance.
Our heat shrink tubing use high quality raw material,all product has RoHS certificate.
Contact us for more guidence
Applications

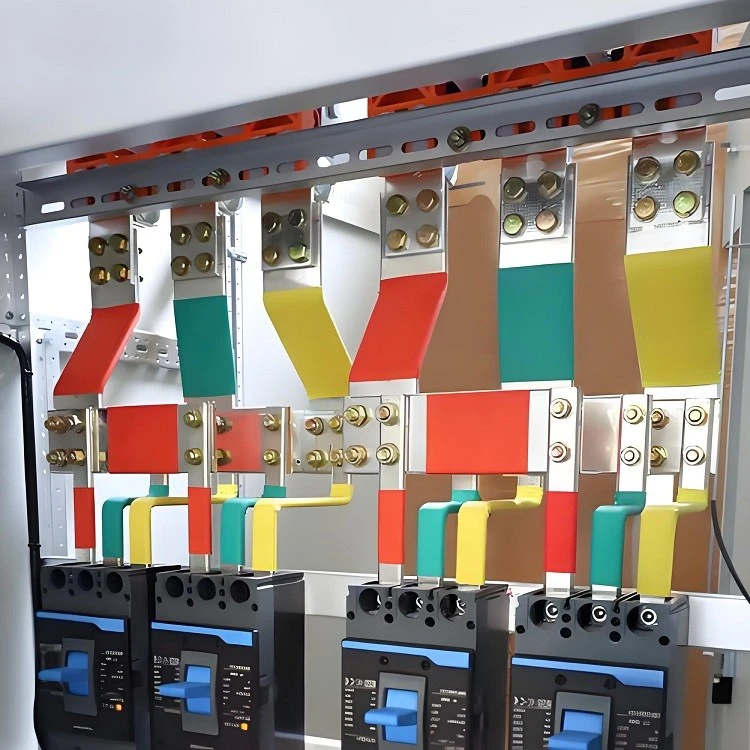

● Power Distribution Systems: Insulating busbars in switchgear, transformers, and control panels.
● Industrial Equipment: Protecting busbars in CNC machines, data centers, and renewable energy systems.
● Transportation: Electric vehicle (EV) battery busbars, rail traction systems.
● HVAC Systems: Insulating busbars in commercial and industrial cooling/heating units.
