Other Cable Accessories

Your Leading Other Cable Accessories Supplier

Jinneng Power Technology (Hubei) Co., Ltd. was established in 2011 and is located in Xiaogan City, Hubei Province. We offer a wide variety of other cable accessories, including 15kV/630A European-style rear connectors, 15kV/630A European-style front couplers, cable protection earthing boxes, 110kV cable direct grounding boxes, and more. Our products are primarily used in power grids, electricity, photovoltaics, communications, chemicals, machinery, smelting, oil fields, factories, charging stations, train stations, hospitals, schools, real estate, and commercial centers.

Why Choose Us?

Strong Production Capacity

The company occupies a total area of over 27,000 square meters, with a total built-up area exceeding 33,000 square meters.

Professional R&D Team

The company possesses robust research and development capabilities, supported by a team of 28 engineers and a high-caliber R&D department.

Advanced Equipment

The manufacturing facility is equipped with a comprehensive set of advanced production and testing equipment.

Complete Qualifications

The company has obtained a range of industry certifications, including ISO 9001, ISO 14001, OHSAS 18001, CCC, CQC, and CE.

Types of Other Cable Accessories

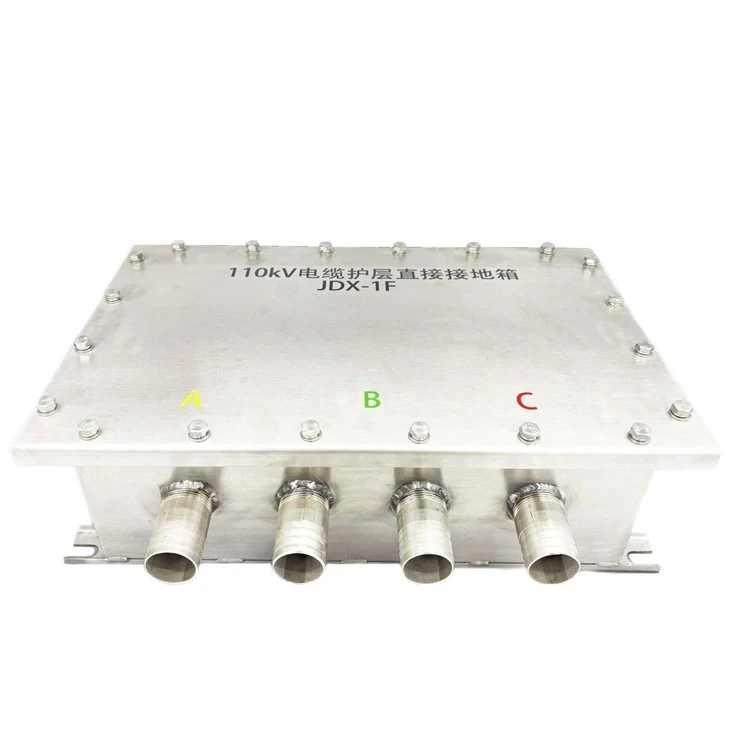

110kV Cable Direct Grounding Box
The 110kV cable direct grounding box is a critical component in high-voltage cable systems, designed to directly ground the metallic shielding layer of cables. It can safely dissipating currents, suppressing power-frequency overvoltages, and preventing insulation breakdown risks.

Cable Protection Earthing Box
The cable protection earthing box is a device designed to provide grounding protection for cables,by connecting the cables to the ground,the earthing box ensures that fault currents can be quickly dissipated,reducing the risk of equipment damage.Typically,the box is equipped with multiple grounding terminals to accommodate various cable types.

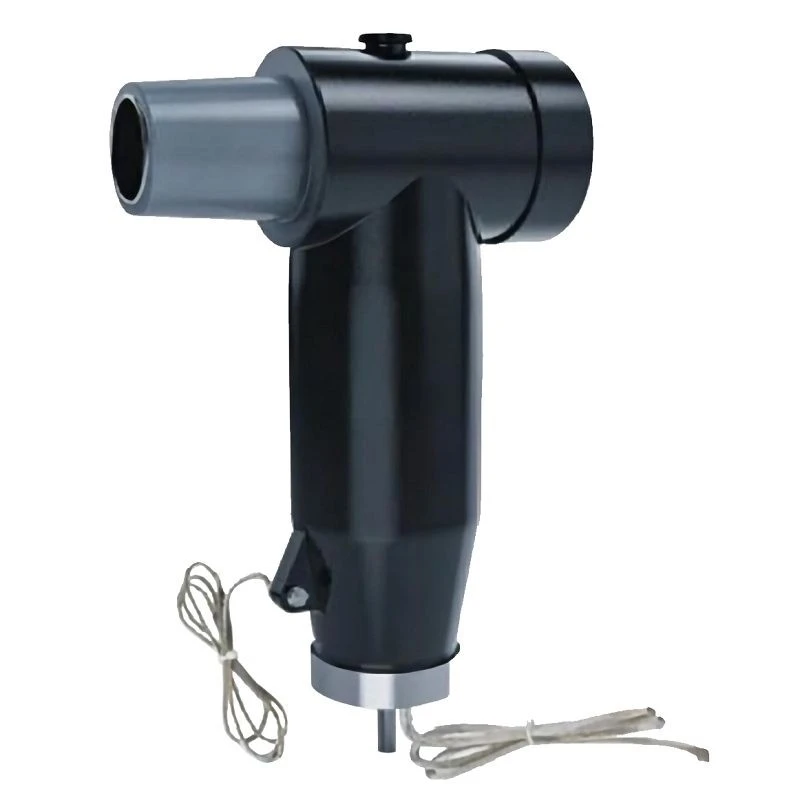

15kV/630A European-Style Rear Connector
The 15kV/630A European-style rear connector (also known as a European-style cable rear connector or European-style rear bushing) is a fully insulated, fully shielded plug-in cable connection device used in medium-voltage (12/15kV) power distribution systems. It is primarily applied in ring main units (RMUs), compact substations, and cable distribution cabinets for cable entry and exit connections.

15kV/630A European Style Front Coupler
15kV/630A European style front coupler is a high-voltage, high-current electrical connector designed for medium-voltage (MV) power distribution,this product is designed to directly connect with the bushings of switchgear in/outgoing lines or wall bushings of cable distribution boxes, providing fully insulated and safe circuitry for switchgear and cable distribution boxes.

Parameters of Other Cable Accessories

Parameter	Specification
Rated Voltage	15kV (Um=17.5kV)
Rated Current	630A (at 40°C ambient)
Applicable Cable Cross-Section	25-630mm² (copper/aluminum conductor)
Power Frequency Withstand Voltage	39kV/5min (no breakdown)
Lightning Impulse Withstand Voltage	95kV (10 impulses, no breakdown)
Short-Time Withstand Current	25kA/3s or 40kA/1s
Protection Class	IP68 (water and dustproof)
Operating Temperature	-50°C to +90°C (short-term +130°C)
Partial Discharge	≤10pC (at 15kV)

Features of Other Cable Accessories

Fully Insulated & Shielded

No exposed live parts, ensuring operational safety.

01

Compact Modular Design

Space-saving, compatible with compact switchgear.

02

High Current-Carrying Capacity

630A continuous load, 40kA short-circuit withstand capability.

03

Environmental Adaptability

Resistant to UV, salt spray, and ozone, suitable for harsh outdoor or underground environments.

04

Plug-In Connection

Easy installation, supports live-line operation (requires specialized tools).

05

Precautions for Using Other Cable Accessories

Inspect portable cord-and-plug connected equipment, extension cords, power bars, charging stations, and electrical fittings for damage or wear before each use. Repair or replace damaged equipment immediately.
Always tape extension cords to walls or floors when necessary. Do not use nails and staples as they can damage the cords and cause fire and shocks.
Use extension cords or equipment that is rated for the level of amperage or wattage that you are using.
Always use the correct size fuse. Replacing a fuse with one of a larger size can cause excessive currents in the wiring and possibly start a fire.
Be aware that unusually warm or hot outlets or cords may be a sign that unsafe wiring conditions exist. Unplug any cords or extension cords from these outlets and do not use them until a qualified electrician has checked the wiring.
Always use ladders made with non-conductive side rails (e.g., fibreglass) when working with or near electricity or power lines.
Place halogen lights away from combustible materials such as cloths or curtains. Halogen lamps can become very hot and may be a fire hazard.
The risk of electric shock is greater in areas that are wet or damp. Install Ground Fault Circuit Interrupters (GFCIs) as they will interrupt the electrical circuit before a current sufficient to cause death or serious injury occurs.
Use a portable in-line Ground Fault Circuit Interrupter (GFCI) if you are not certain that the receptacle you are plugging your extension cord into is GFCI protected.
Make sure that exposed receptacle boxes are made of non-conductive materials.
Know where the panel and circuit breakers are located in case of an emergency.
Label all circuit breakers and fuse boxes clearly. Each switch should be positively identified as to which outlet or appliance it is for.
Do not use outlets or cords that have exposed wiring.
Do not use portable cord-and-plug connected power tools if the guards are removed.
Do not block access to panels and circuit breakers, or fuse boxes.
Do not touch a person or electrical apparatus in the event of an electrical incident. Always disconnect the power source first.
Make sure electrical tools and equipment have a certification marking from an accredited agency accepted by your jurisdiction (e.g., UL, ULC, CSA, ETL). Be careful when purchasing equipment from another country or online, as they may not be approved.
Make sure only qualified individuals work on or perform maintenance on electrical equipment (e.g., electricians).

Ordering Process

Send Us Inquiry → Receive Our Quotation → Negotiate Details → Confirm the Sample → Sign Contract/Deposit → Mass Production →Cargo Ready → Balance/Delivery → Further Cooperation

Our Service Advantages

1

Order processing

Quickly respond to customer orders to ensure accuracy.

2

Production coordination

Work closely with production department to monitor production progress and ensure on-time delivery.

3

Logistics arrangement

Select the most suitable logistics partners to ensure product safety and on-time delivery.

4

Installation guide

Provides detailed installation guidance and technical support to ensure the correct installation and configuration of the product.

Certificate

productcate-1-1

FAQ

Q: What's your payment term?

A: T/T, 30% deposit, 70% balance before shipment, but it depend on actual situation.

Q: Do you have R&D ability?

A: Of course, meanwhile we can provide power supply solutions for you.

Q: What's the MOQ?

A: We can accept 1pc as initial order to support you, but bulk order will have the most favorable price.

Q: How to ensure product quality?

A: We have strict quality control during every procedure, and there is ways final Inspection(testing one by one to make sure the equipment is working in normal before shipment.

Q: Can you make customized product?

A: We can accept customized product if Qty is large, according to your requirement to manufacture the products.

Q: What's the lead time?

A: Generally speaking, the production will be started when received the deposit, production time is within 30 days according to products and various. If qty is small and we have stock, shipping will be arranged in one week.

As one of the most professional other cable accessories manufacturers and suppliers in China, we're featured by quality products and good service. Please rest assured to wholesale customized other cable accessories made in China here from our factory.
