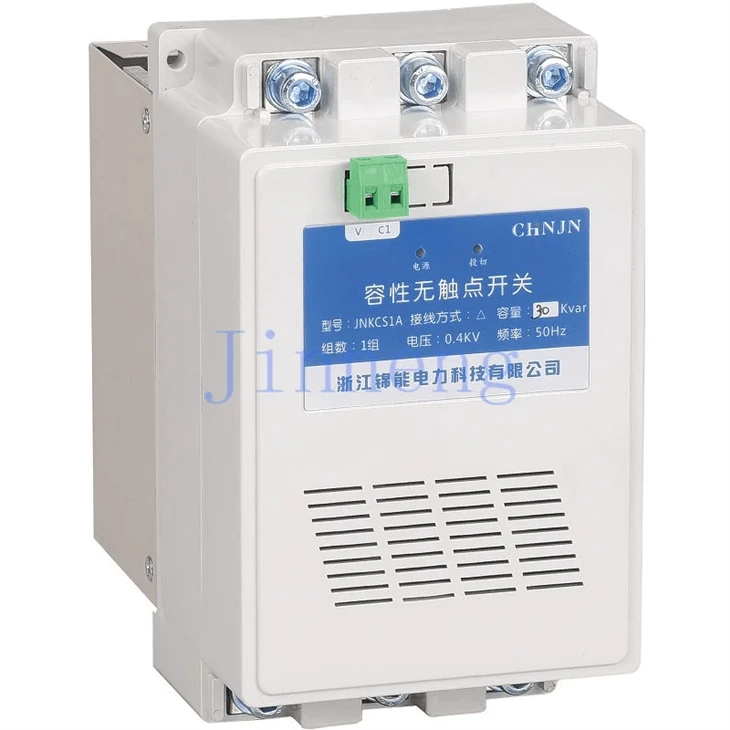

Solid-state Contactor For Capacitor Banks
✅Ultra-Fast Response (≤20ms) & Inrush-Free Switching
✅Maintenance-Free, Long Service Life
✅Engineered for High-Frequency Cycling
✅Silent, Solid-State Operation
✅Intrinsically Safe & Explosion-Proof Design

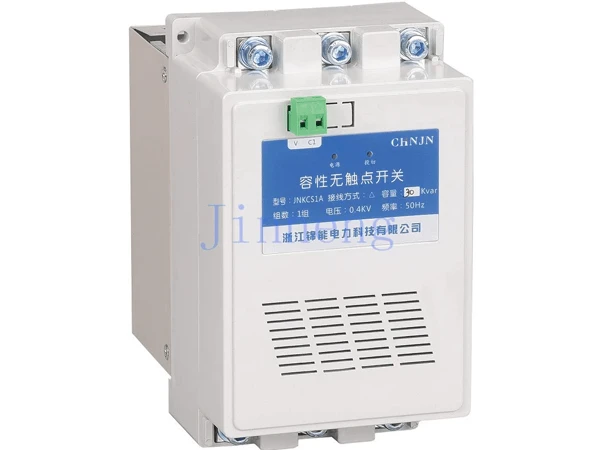

- Product Introduction
The Solid-state Contactor For Capacitor Banks is an intelligent, solid-state switching device driven by advanced power electronics.This Solid-state Contactor For Capacitor Banks has feautures as below:
Zero-Cross Switching: Utilizing high-power thyristors (SCRs) as core switching elements, it achieves precise, electronic-triggered control for "zero-crossing" and completely arc-free operations.
Elimination of Mechanical Wear: By removing traditional mechanical contacts entirely, the Solid-state Contactor For Capacitor Banks eliminates the issues of contact arcing, erosion, and mechanical degradation inherent in conventional contactors and relays.
High-Frequency & High-Reliability: This design makes it exceptionally well-suited for demanding power control environments that require rapid, high-frequency switching and long-term operational reliability.
Versatile Applications:The Solid-state Contactor For Capacitor Banks is widely deployed across power electronics, industrial automation, and power quality management (such as reactive power compensation systems).

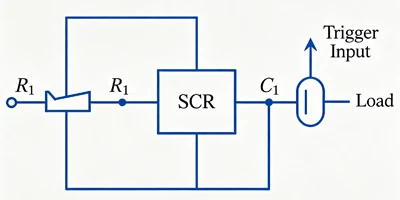

Components
Components
1
Thyristor (SCR / TRIAC)
Serves as the primary solid-state switching element using either unidirectional (SCR) or bidirectional (TRIAC) configurations. Conduction is initiated via a gate (G) terminal trigger signal, and turn-off occurs naturally when the load current crosses zero (line commutation).
2
Trigger Circuit
Controls the thyristor's precise turn-on timing, enabling either zero-crossing synchronization or variable phase-angle control.
3
Voltage/Current Detection
Continuously monitors grid conditions to synchronize switching windows, effectively eliminating transient inrush currents.
4
Thermal Management
Utilizes heavy-duty aluminum heat sinks or forced-air cooling systems to maintain optimal junction temperatures.
Operating Modes
1. Zero-Crossing Switching
Triggers conduction precisely when the AC voltage crosses zero. This prevents rapid voltage changes and eliminates high inrush currents, making it the ideal method for switching capacitive and inductive loads.
2. Phase-Angle Control
Regulates power delivered to the load by continuously delaying the gate trigger angle relative to the AC line voltage cycle. This mode is widely used for resistive heating, phase dimming, and motor speed control.
Technical Specifications
Input & Control
Controller Input Voltage: 8 – 16 VDC
Response Time: less than 20 ms
Continuous Switching Response Time: less than 40 ms
Load & Output Ratings
Load Circuit Rated Voltage: 400 VAC (50/60 Hz)
Operating Voltage Range: Un±10%
Maximum Load Capacity:
Three-Phase: 60 kvar
Single-Phase: 15 kvar
Power Consumption: Approximately 2 W/A (per Ampere of load current)
Power Quality & Tolerances
Total Harmonic Distortion (Voltage THD): ≤5%
Features
product Features
| Feature | Description |
|---|---|
| No Mechanical Contacts | No moving parts, long lifespan (>1 million cycles), no arcing or sparking during switching. |
| Fast Response | Switching time in microseconds (μs), far faster than mechanical relays, suitable for fast switching scenarios such as TSC capacitor banks, with no inrush current caused by mechanical contact bounce. |
| High Reliability | Resistant to vibration, dust, and harsh environments, widely applicable to mining, metallurgy and other harsh industrial scenarios. |
| Low Power Consumption | Extremely low standby power loss in off state; low trigger power, no continuous power consumption required for maintaining the on state (latching characteristic of thyristors). |
| Smart Control | Compatible with PLCs and microcontrollers, easy to realize automated switching control, widely used in smart capacitor compensation systems. |
Switch Comparison
Switch Comparison
| Feature | Thyristor Non-Contact Switch | AC Contactor | Mechanical Switch | Hybrid Switch |
|---|---|---|---|---|
| Switching Principle | Electronic triggering | Electromechanical | Mechanical action | Thyristor + Mechanical |
| Lifespan (cycles) | >1,000,000 | ~100,000 (electrical lifespan; mechanical lifespan >1,000,000) | ~50,000 | >500,000 |
| Response Speed | Microsecond-level | Millisecond-level | Millisecond-level | Microsecond-level (switching transient completed by thyristor; mechanical contact action is millisecond-level, no impact on switching speed) |
| Conduction Loss | 1~2V voltage drop | Very low (<0.1V) | Very low (<0.1V) | Very low (steady-state conduction loss, after mechanical contact closes; thyristor only conducts during switching transients) |
| Arcing Issue | None | Present | Present | Minimal |
| Heat Dissipation | High (requires heatsink) | Low | Low | Moderate |
| Cost | High | Medium | Low | High (higher than thyristor-only switch) |
| Typical Applications | TSC, dimming, soft-start | Motor control, power distribution | Manual switching, protection | Capacitor bank switching, motor soft-start, frequent switching industrial loads, UPS bypass |
| Switching Principle | Electronic triggering | Electromechanical | Mechanical action | Thyristor + Mechanical |

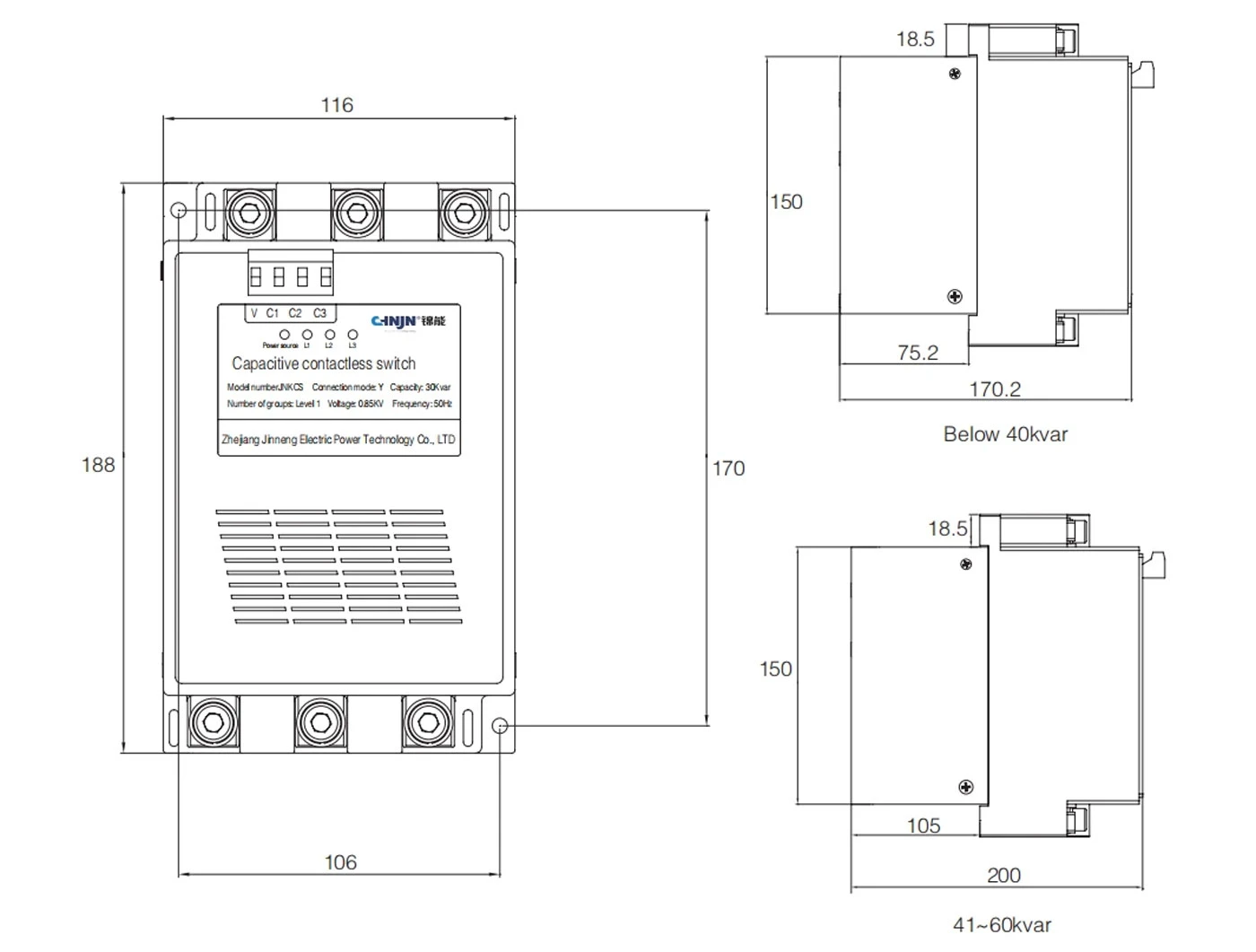

Dimensions
Typical Applications
Applications
Thyristor-Switched Capacitor (TSC) Systems: Ideal as the core switching topology for high-speed, transient-free capacitor banks.
Dynamic Reactive Power Compensation Cabinets: Dynamically cycles shunt capacitor steps to provide rapid, real-time power factor correction (PFC).
Heavy Industrial Loads: Engineered for environments with rapidly fluctuating and highly cyclical loads, such as automated welding workshops, shipyards, crane operations, and steel rolling mills.
Power Quality-Sensitive Facilities: Deployed in data centers, semiconductor fabrication plants, and precision manufacturing facilities to prevent voltage sags, flickers, and harmonic disruptions.
