APF Cabinet
✅Ultra-fast response<10ms
✅Metigate 2nd–50th order harmonics
✅Real-Time Harmonic Suppression
✅Three-Phase Load Balancing
✅Voltage Fluctuation Suppression
✅Integrated Reactive Power Compensation
✅ Adaptive Intelligent Control
✅ Modular and Scalable Design
✅ Wide Application Compatibility
- Product Introduction
Products Description
Active Power Filter (APF) Cabinet | Dynamic Harmonic Suppression & Power Quality Solution
Our premium Active Power Filter (APF) Cabinet utilizes advanced IGBT inverter technology and high-speed DSP algorithms to continuously monitor load currents.It will provide the super safeguard to yourindustrial power systems and eliminate costly downtime.This device is specifically designed to replace traditional passive filters.It instantly generates compensation currents equal in magnitude but opposite in phase to the detected harmonics, effectively canceling them out in real time. Whether you are managing variable frequency drives (VFDs), UPS systems, or automated production lines, this cabinet dynamically suppresses 2nd to 50th harmonics, improves power factor, and balances three-phase loads. It ensures your grid remains clean, compliant, and highly efficient, ultimately extending equipment lifespan and reducing energy waste.
ProductsFeature
- Sub-10ms Ultra-Fast Response: Real-time tracking and compensation with a full response time of less than 10ms, preventing harmonic interference before it damages sensitive equipment.
- Modular & Scalable Design: Flexible capacity options (30A to 300A per cabinet) with hot-swappable modules. Easily expand your system as your facility grows without replacing the entire unit.
- Comprehensive 3-in-1 Solution: Beyond harmonic filtering, it simultaneously compensates for reactive power (improving PF to >0.95) and balances three-phase currents, eliminating utility penalty fees.
- Industrial-Grade Reliability: Engineered for harsh environments with IP30/IP54 protection, independent air ducts, and anti-dust coating. Operates stably in temperatures ranging from -10°C to +45°C.
- Smart Real-Time Monitoring: Features an intuitive 7-inch touch screen displaying real-time waveforms, THDi/THDu, voltage, current, and power factor. Supports RS485/Modbus for seamless integration with your SCADA system.
- Intelligent Self-Protection: Built-in auto-current limiting, anti-resonance detection, and comprehensive fault protection (over-voltage, over-current, over-temperature) ensure 24/7 safe operation without manual intervention.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 380V / 400V / 690V (±20%) |
| Rated Frequency | 50Hz / 60Hz (±5%) |
| Harmonic Compensation | 2nd to 50th order (Full spectrum or selective) |
| Compensation Rate | ≥ 95% |
| Response Time | < 10ms (Full response) |
| Power Factor Correction | -1 to +1 continuously adjustable |
| Communication Interface | RS485, LAN, Modbus RTU / TCP |
| Protection Level | IP30 (Standard), IP54 (Optional) |
| Operating Temperature | -10°C to +45°C (Derating above 45°C) |
| Cooling Method | Intelligent forced air cooling |
| Installation Type | Floor-standing cabinet / Rack-mounted module |
Application
Our APF Cabinet is an intelligent power electronic device designed to:
- Dynamically suppress grid harmonics
- Compensate reactive power and maintain the power factor above 0.95
- Balance three-phase loads
It significantly improves overall power quality and is widely used in industrial, commercial, and renewable energy applications.
- Industrial: Variable frequency drives (VFDs), rolling mills, arc furnaces, welding machines.
- Data Centers: Servers, UPS systems, and other IT equipment harmonic suppression.
- Renewable Energy: Grid-connected harmonics from PV inverters & wind converters.
- Commercial Buildings: Elevators, LED lighting, HVAC systems.
FAQ
Q: Does an APF require additional capacitor banks?
A:In most cases, no. The APF can independently provide both harmonic filtering and reactive power compensation.
Q: Where should the APF cabinet be installed?
A: It is recommended to install the APF cabinet close to harmonic sources, such as VFD clusters, to achieve more effective direct compensation.
Q: How can the ROI of an APF system be evaluated?
A:ROI can be assessed by calculating reduced harmonic losses, avoided utility power factor penalties, lower maintenance costs, and extended equipment service life.

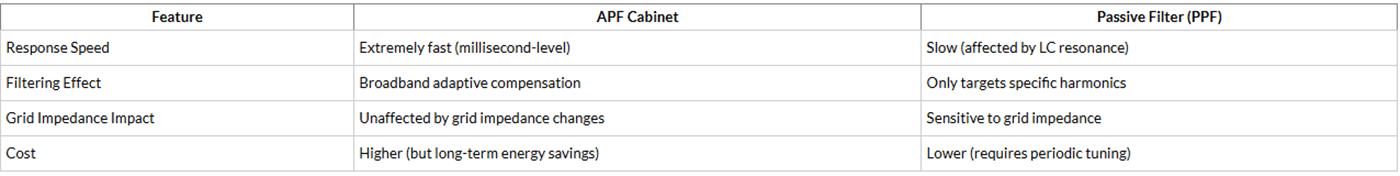

Q: What is the main advantage of your APF over traditional passive filters?
A: Passive filters are tuned to specific frequencies and can cause system resonance. Our APF dynamically tracks and cancels harmonics from 2nd to 50th orders in real time, adapts to changing loads automatically, and eliminates resonance risks entirely.
Q: Can this APF cabinet solve our low power factor penalty from the utility company?
A: Absolutely. While its primary function is harmonic filtering, the APF also provides dynamic reactive power compensation. It can easily maintain your power factor above 0.95, helping you avoid costly utility fines.
