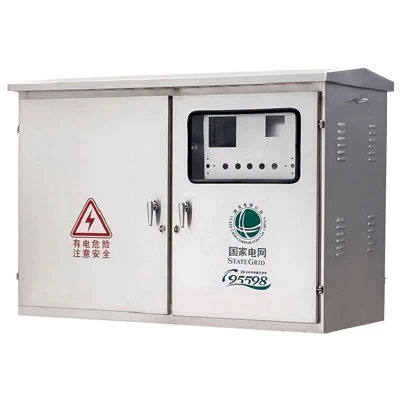

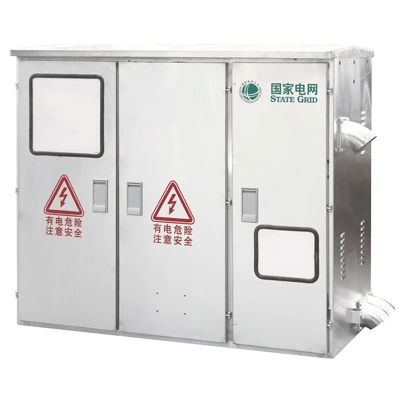

Smart Integrated Distribution Cabinet
✅Comprehensive Protection & Early Warning: Advanced diagnostic analytics provide real-time fault detection and predictive alerts, mitigating system failures before they occur.
✅Full "Four Remote" Functionality: Seamless telemetry integration enabling Remote Measurement, Remote Signaling, Remote Control, and Remote Adjustment via standardized communication protocols.
✅Precision Energy Management: High-accuracy power quality monitoring and real-time load tracking for granular energy consumption visibility
✅Cost Optimization & Value Creation: Maximizes system efficiency, eliminates low power factor penalties, and extends component lifespans to deliver a rapid return on investment (ROI).
- Product Introduction
The Smart Integrated Distribution Cabinet is engineered specifically for rural and urban distribution transformers. It is designed for low-voltage power distribution systems operating at a rated frequency of 50Hz AC, a rated working voltage of 400V, and a rated current of up to 630A.
Optimized for pole-mounted outdoor installation, this versatile, all-in-one Smart Integrated Distribution Cabinet serves as an integrated low-voltage solution that combines power distribution, energy metering, real-time electricity data collection, comprehensive monitoring and measurement, reactive power compensation, and robust circuit protection into a single system.
Key Features & Technical Advantages
Broad Grid Compatibility
- Optimized Application: Engineered specifically for public distribution transformers in rural, suburban, and urban networks.
- Standard Ratings: Rated for 50Hz AC systems with a 400V operating voltage and a rated current up to 630A.
- Outdoor Deployment: Ruggedly designed for seamless, pole-mounted outdoor installation.
Advanced Smart Grid Integration
- Real-Time Telemetry: Continuous electricity data collection and system monitoring to maximize grid visibility and management.
- Intelligent Load Control: Features active demand-side management and load control to prevent overloads and optimize power distribution.
- Automation Ready: Fully supports remote monitoring, bidirectional communication, and smart grid automation standards.
High-Performance Power Quality & Protection
- Reactive Power Compensation: Built-in power factor correction (PFC) to stabilize voltage, minimize transmission losses, and eliminate utility penalties.
- Comprehensive Protection: Integrated safeguards against overload, short-circuit, phase failure, and overvoltage to ensure system longevity.
- Weatherproof Durability: Heavy-duty, corrosion-resistant enclosure construction built to withstand harsh outdoor environments and extreme weather.
Next-Generation Design Evolution
- Upgraded Infrastructure: Developed as an advanced, intelligent evolution of the traditional JP cabinet, integrating smart automation into a proven footprint.
- Data-Driven Analytics: Supports bidirectional data transmission for smart metering infrastructure (AMI) and advanced grid analytics.
Specifications
Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 400V AC (±10%, L-L) / 230V AC (±10%, L-N) |
| Rated Frequency | 50Hz (±2%) |
| Rated Current | Up to 630A (configurable at 200A / 400A / 630A) |
| Rated Short-Time Withstand Current (1s) | ≥15kA (IEC 61439-1 compliant) |
| Rated Peak Withstand Current | ≥30kA (IEC 61439-1 compliant) |
| Rated Insulation Level | 2kV (1min power frequency withstand, IEC 61439-1 compliant) |
| Enclosure Protection Level | IP54 (dust-protected, splash-resistant, IEC 60529 compliant) |
| Operating Temperature | -25℃ to +70℃ (outdoor ambient) |
| Ambient Relative Humidity | ≤95% RH (non-condensing) |
| Installation Method | Pole-mounted (outdoor) or ground-mounted |
| Material | Galvanized steel or stainless steel (corrosion-resistant) |

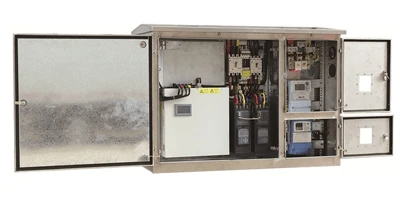

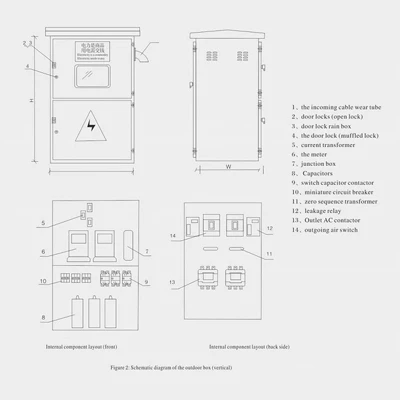

Functional Modules
Functional Modules
1
Advanced Power Distribution Module
Modular Busbar System: Engineered for easy scalability, safe power distribution, and fast on-site expansion.
Flexible Circuit Protection: Equipped with premium molded case circuit breakers (MCCB) or air circuit breakers (ACB) to suit specific system topologies.
High-Density DIN-Rail Mounting: Organizes auxiliary components in a compact, vibration-resistant layout optimized for harsh outdoor environments.
2
Precision Metering & Monitoring Module
Revenue-Grade Smart Metering: Features an integrated smart energy meter with Class 1.0 accuracy (MID certified) for precision billing and data logging.
Comprehensive Power Quality Analysis: Continuous tracking of total harmonic distortion (THD), voltage sags, swells, and transient events.
High-Capacity Data Logger: Onboard storage capable of holding 365 days of chronological historical data for seamless grid auditing.
3
Intelligent Reactive Power Compensation Module
Multi-Step Automatic Controller: Dynamic power factor correction utilizing an automatic capacitor bank controller supporting 6 to 12 switching steps.
Zero-Crossing Switching: Utilizes thyristor or contactor-based switching with zero-voltage crossing technology to eliminate destructive inrush currents and extend component lifespan.
Harmonic Mitigation: Optional integrated harmonic distortion filters to suppress network noise and maintain THD at less than 5%.
4
Communication & SCADA Integration
Universal Protocol Support: Native compatibility with open industry standards including Modbus RTU, DL/T 645, and IEC 61850 for seamless utility substation integration.
Cloud-Enabled Remote Management: Full compatibility with modern IoT cloud platforms, enabling secure, real-time remote monitoring and diagnostic analytics via PC dashboard or mobile application.
Advantages vs. Traditional JP Cabinets
Smart Integrated Distribution Cabinet vs. Traditional JP Cabinets
| Feature | JP IE (Smart Cabinet) | Traditional JPC Cabinet |
|---|---|---|
| Remote Monitoring | Yes (4G/Cloud) | No |
| Reactive Compensation | Automatic & Dynamic | Manual/Fixed |
| Load Management | Peak shaving, Alerts | Not available |
| Fault Detection | Real-time diagnostics | Basic protection only |
| Energy Efficiency | Optimized via AI logic | Static operation |
Usage Conditions
Usage Conditions
Ambient Temperature Range: -25°C to +40°C.
Atmospheric Conditions: Air relative humidity must not exceed 90% (both daily average and monthly average).
Installation Altitude: Up to 2,000 meters above sea level (no derating required up to this limit).
Environmental Requirements: Installation must be in a location free from violent vibration,shock,or corrosive gases.
Applications
Rural Grid Upgrades: Modernized replacement for aging or legacy distribution boxes to improve power quality and stability in rural networks.
Solar & Wind Hybrid Systems: Smart, integrated energy management to optimize power factor and stabilize fluctuations from intermittent renewable energy sources.
Industrial Parks & Manufacturing Hubs: Demand-side load control and dynamic power factor correction to lower peak demand charges and maximize energy efficiency.
Smart Cities & Infrastructure: IoT-enabled grid analytics and real-time power quality monitoring seamlessly integrated into municipal utility networks.
