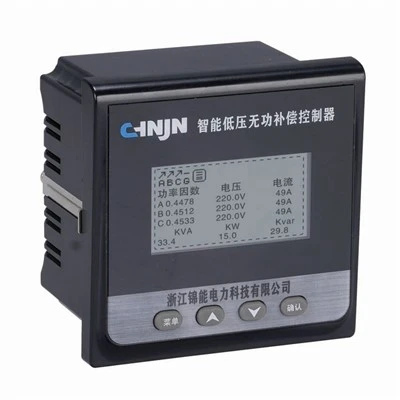

Smart Capacitor Controller
✅ Reduced Energy Costs: Lowers utility bills by 5–20% through efficient reactive power management.
✅ Optimized Power Quality: Stabilizes voltage and prevents switching-induced grid disturbances.
✅ Extended Asset Lifespan: Mitigates overheating in transformers, switchgear, and distribution cables.
✅ Utility Compliance: Ensures continuous power factor optimization to eliminate low-PF penalties (e.g., PF < 0.90).
✅ Remote Monitoring & Diagnostics: IoT-capable architectures enable real-time tracking and predictive maintenance alerts.
✅ Seamless Scalability: Modular control steps allow easy system expansion as load demands scale.
- Product Introduction
A Smart Capacitor Controller is an advanced electronic device designed to optimize the performance, efficiency, and reliability of capacitor banks within electrical power systems. By intelligently managing reactive power compensation, the Smart Capacitor Controller improves the power factor, minimizes energy losses, and enhances overall voltage stability.
Main Features
Key Features & Technical Capabilities
Intelligent Switching Control: Equipped with a high-performance Microcontroller Unit (MCU), the Smart Capacitor Controller utilizes multi-point sampling and real-time calculations to automatically manage the switching of smart capacitors based on preset parameters. By using reactive power as the primary switching physical quantity, the Smart Capacitor Controller effectively prevents switching oscillations (hunting or short-cycling), protecting the grid from transient voltage disturbances.
High-Precision Metering & Display: Incorporating dedicated energy metering integrated circuits (ICs), the controller delivers high-precision measurements of electrical grid parameters. Real-time data-including Phase A, B, and C voltage, current, power factor, active power (P), and reactive power (Q)-is clearly displayed on an integrated LCD screen.
Robust Architecture & User Interface: The product features an intuitive, user-friendly Human-Machine Interface (HMI) for effortless configuration and monitoring. Engineered with advanced anti-interference microcontroller technology, it ensures reliable and stable operation even in harsh electromagnetic environments.
Technical Parameter
| Specification Item | Technical Specification |
| Operating Ambient Conditions | -20°C to +45°C |
| Rated Operating Voltage | 220V ± 20% |
| Rated Power Frequency | 50Hz |
| Voltage Total Harmonic Distortion (THD) | ≤ 15% |
| Relative Humidity (RH) | 20% to 90% RH (at 20°C) |
| Operating Altitude | ≤ 2500 m (above sea level) |
| Site Environment Requirements | No flammable/explosive materials, conductive dust, or corrosive gases present |
| Control Circuit Configuration | Supports up to 32 channels for group/individual phase compensation of smart capacitors |
| Voltage Measurement: ±1% FS | |
| Current Measurement: ±1% FS | |
| Power Factor Measurement: ±1% FS | |
| Reactive Power Measurement: ±2% FS |
Strength
Strength
- Intelligent Automatic Management
Automatically identifies capacitor types, completes networking and addressing, and supports automatic fault isolation and new capacitor integration.
- Real-Time Monitoring
Continuously monitors operating status, alarms, harmonics, temperature, and key electrical parameters for reliable system operation.
- Easy Communication & Integration
Equipped with an RS485 interface and supports the MODBUS-RTU protocol for convenient connection to monitoring systems.
- User-Friendly Operation
Features a 192 × 96 large-screen LCD with a full-English graphical menu for simple and intuitive operation.
- Flexible System Compatibility
Supports both 3-phase 4-wire and 3-phase 3-wire systems, suitable for various reactive power compensation applications.
- Large Capacity Control
One controller can manage up to 32 intelligent capacitors, meeting the needs of most compensation systems.
- Built-in Temperature Control
Supports automatic fan control for cabinet temperature management, improving operational reliability and equipment lifespan.
Wiring Diagram
Application
Application
Industrial Plants: Optimizes power factor for heavy inductive loads like electric motors, automated assembly lines, welding machines, and CNC systems.
Commercial Infrastructure: Enhases voltage stability and power quality in shopping malls, modern hospitals, and mission-critical data centers.
Renewable Energy Grid Tie-ins: Manages rapid fluctuations in utility-scale solar and wind farms experiencing highly variable reactive power loads.
Heavy Industries (Oil & Gas, Mining): Delivers dynamic reactive power compensation for massive inductive loads operating under harsh conditions.
