Complete Guide to European-Style Box-type Substations (10/0.4 kV)
Sep 12, 2026| The European-style box-type substation (also known as a compact or prefabricated substation) is an all-in-one power distribution system. It integrates high-voltage switchgear, a distribution transformer, and low-voltage distribution equipment into a single, pre-wired enclosure.
Designed for 10/0.4 kV three-phase AC systems, these compact units handle power reception, voltage transformation, and distribution.
Core Operating Principle & Key Benefits
European-style substations utilize a modular, compartmentalized layout:
Power Intake: High-voltage electricity enters through the HV compartment.
Protection & Control: Power passes through integrated protection units.
Voltage Transformation: The transformer steps down the voltage to low levels (0.4 kV).
- Distribution & Metering: The power moves to the LV section for reactive power compensation, metering, and distribution to end-load circuits.
Why Choose a Prefabricated Substation?
- Plug-and-Play Installation: Fully assembled, wired, and tested in the factory before delivery.
- Fast Energization: On-site installation requires only high- and low-voltage cable connections.
- 80%+ Less Fieldwork: Drastically reduces manual on-site assembly, cutting construction timelines and labor costs.
Main Components of a European-Style Substation
Most European-style compact substations feature a 3-compartment layout arranged in a "Mu" (目) or "Pin" (品) structural shape. Each compartment is physically isolated, allowing safe maintenance on one section without disturbing the others.
1. High-Voltage (HV) Compartment
Designed with a compact layout and robust "five-prevention" safety interlocks to prevent operator error:
Key Equipment:
Ring main units (RMU), load switches, fuse combination units, surge arresters, voltage transformers (VT), and live-line indicators.
- Phase Loss Protection: If a single-phase fuse blows, a built-in striker automatically trips all three phases on the load switch to prevent phase-loss operation.
Smart Grid Ready: Optional motor-operated mechanisms allow easy integration into smart distribution automation systems.

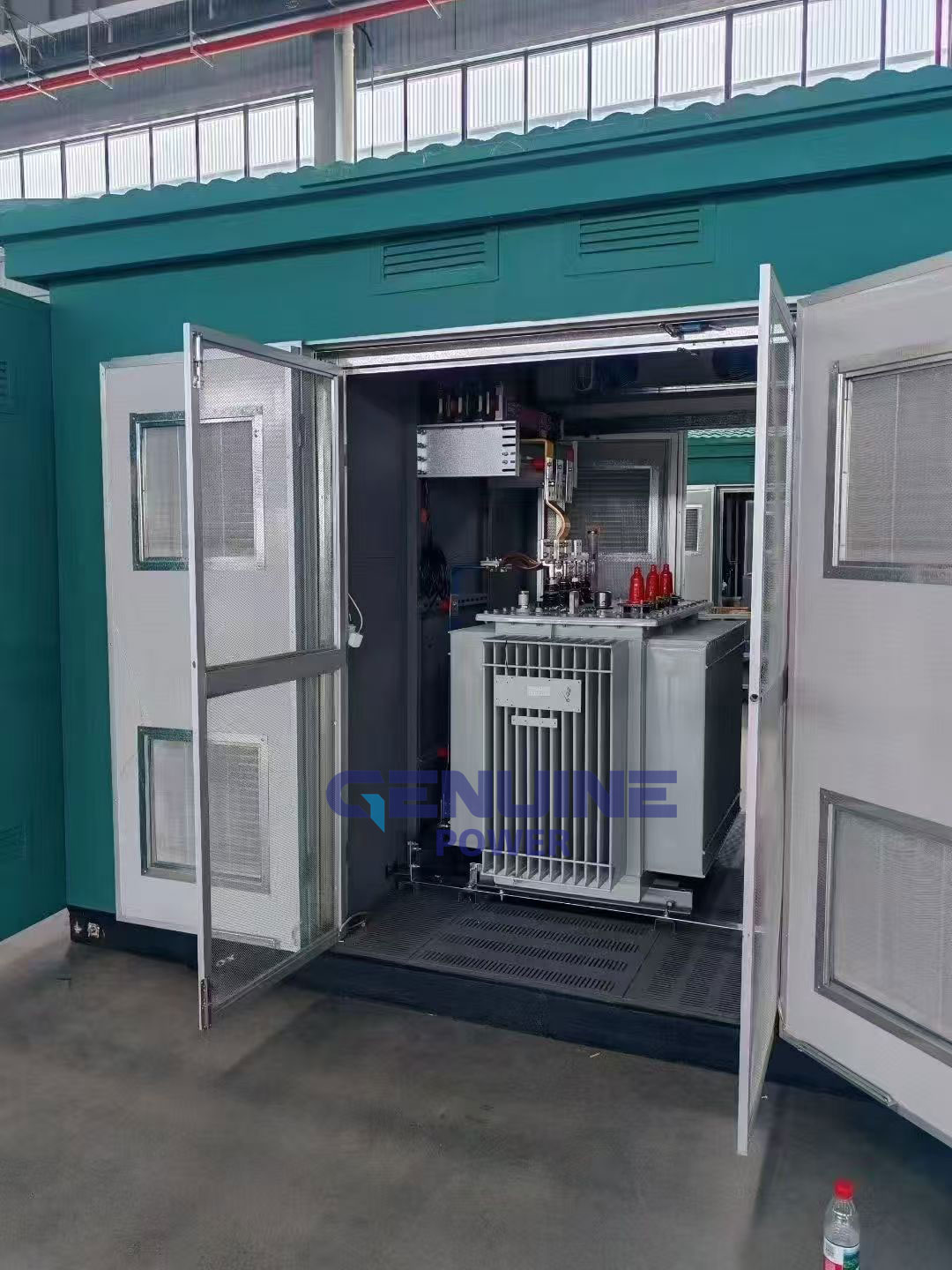

2. Transformer Compartment
Houses the core transformation unit with optimized thermal management:
- Transformer Types: Supports oil-immersed transformers (S11/S13) or dry-type transformers (SCB11/SCB13) with a D,yn11 connection group.
- Temperature Control: Equipped with real-time oil/winding temperature sensors.
- Forced Cooling: Features natural ventilation louvers along with automated, top-mounted forced-air cooling fans that kick in during high heat to prevent power deratin
3. Low-Voltage (LV) Compartment
Acts as the central control and distribution hub:
- Integrated Units: Houses the LV incoming cabinet, capacitor compensation cabinet, and multi-circuit LV outgoing cabinets.
- Power Management: Includes current transformers, digital metering instruments, and main circuit breakers.
- Customization: Outgoing circuits and secondary control circuits can be fully tailored to meet specific project metering and power-factor correction needs.
4. Protective Enclosure & Housing
Built to withstand harsh environmental conditions while blending into urban aesthetics:
- Durable Materials: Fabricated from high-grade steel sheet, aluzinc plate, or aluminum alloy.
- Thermal Insulation: Features a double-layer roof filled with rock wool or expanded polystyrene (EPS) to block heat radiation.
- Weatherproof & Secure: Meets strict IP protection ratings against sunlight, rain, dust, and small animal intrusion.
- Aesthetic Finishes: Custom paints, brick textures, or veneers can be applied to match surrounding residential, commercial, or industrial architecture.
