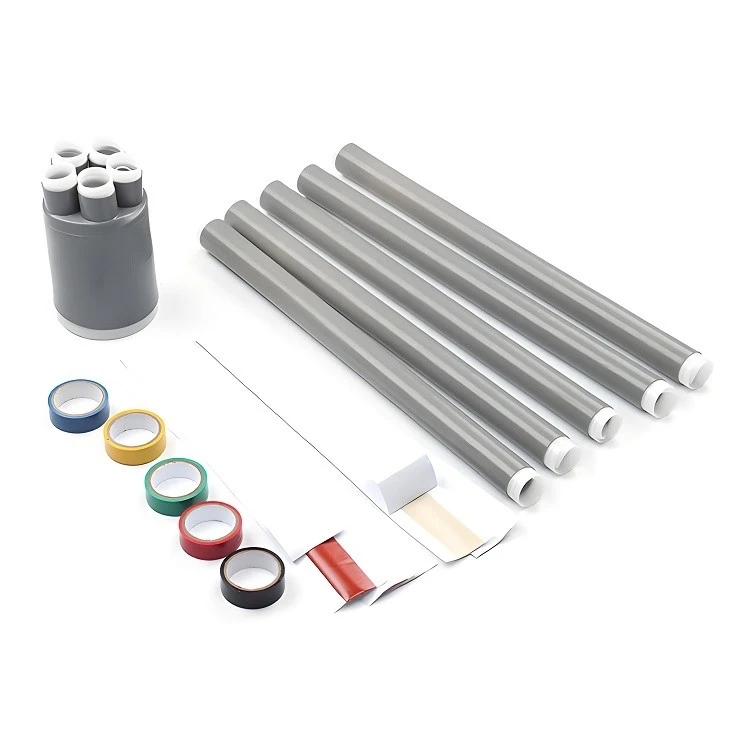

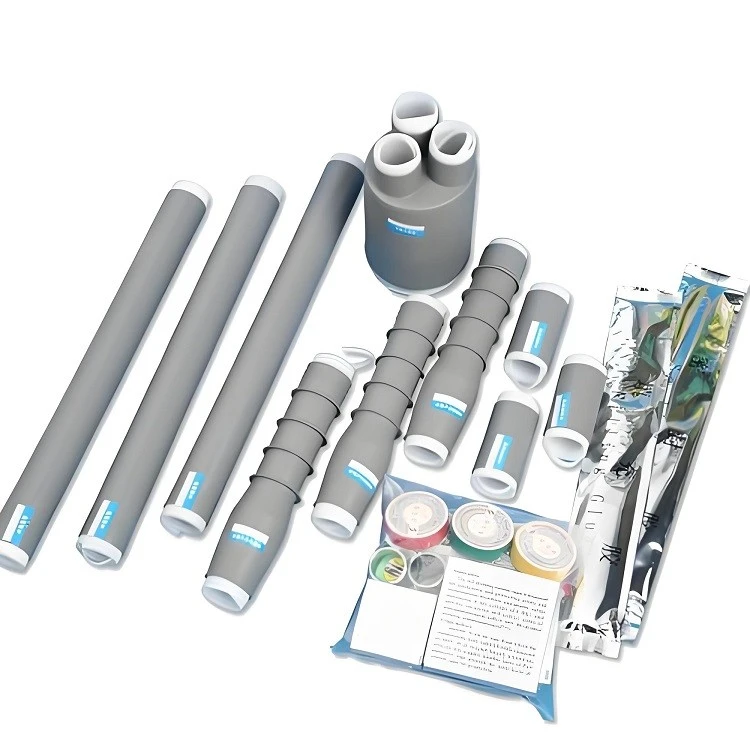

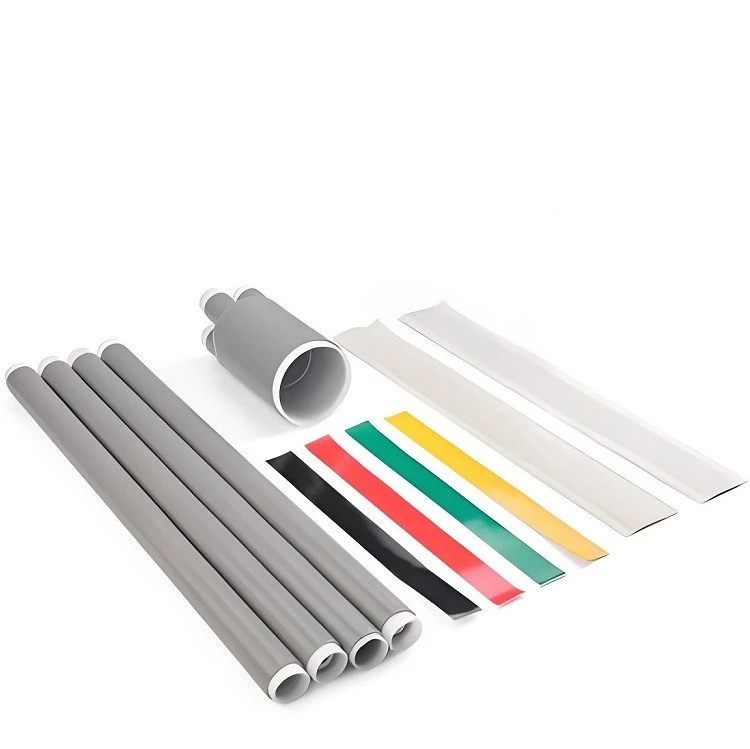

LV 0.6 1kV Cold Shrink Straight Through Cable Joints

Low Voltage 0.6 1kV cold shrink straight through cable Joints is a pre-assembled kit designed to create a permanent, insulated, and sealed connection between two low-voltage power cables. It is a most common and reliable method for splicing cables in modern electrical installations.



● Low Voltage (1kV): Designed for electrical systems with a rated voltage up to 1000 Volts. This covers the vast majority of industrial, commercial, and utility power distribution cables (400V,600V,1000V)

● Straight Joint: Also known as an "in-line splice," it connects two cables end-to-end

● Cold Shrink: installation does not require heat or flames.The joint core is pre-expanded and held on a removable plastic support spine. Pulling the spine releases it, then the rubber shrink tightly onto the cable

● Excellent Sealing and Moisture Resistance:Cold shrink joints use silicone rubber, which have a permanent elastic memory function. Even after many years, they remain tightly wrapped around the cable and will not loosen









Parameter Category	Technical Parameter Item	Typical Value
Rated Voltage	System Highest Voltage (Um)	1.2 kV
	Rated Voltage (U0/U)	0.6/1 kV
Withstand Voltage Tests	Power Frequency Withstand Voltage Test (AC Voltage Test)	3.5 kV / 5 min
	Partial Discharge Test	≤ 10 pC (at 1.5U0)
Insulation Resistance	Insulation Resistance	≥ 1000 MΩ
Impulse Withstand	Lightning Impulse Withstand Voltage Test	10 kV
Short-Circuit Performance	Short-Circuit Current Capacity	Matched to the connected cable
Screening Performance	Outer Screen Resistivity	≤ 5 kΩ·m
Long-Term Operating Performance	Rated Current Capacity	Same as or higher than the connected cable
Environmental Endurance	Operating Temperature Range	-50°C to +90°C (or wider)
	Ingress Protection (IP) Rating	IP68

Note：Above electrical parameters are typical value for reference,pls contact us for more details





Product Model	Voltage Rating (kV)	Model Number	Conductor Cross-Section (mm²)
3-core Cold Shrinkable straight through Joint	0.6/1(1.8/3)kV	JLS-1-3.1	25-50
	0.6/1(1.8/3)kV	JLS-1-3.2	70-120
	0.6/1(1.8/3)kV	JLS-1-3.3	150-240
	0.6/1(1.8/3)kV	JLS-1-3.4	300-400
4-core Cold Shrinkable straight through Joint	0.6/1(1.8/3)kV	JLS-1-4.1	25-50
	0.6/1(1.8/3)kV	JLS-1-4.2	70-120
	0.6/1(1.8/3)kV	JLS-1-4.3	150-240
	0.6/1(1.8/3)kV	JLS-1-4.4	300-400
5-core Cold Shrinkable straight through Joint	0.6/1(1.8/3)kV	JLS-1-5.1	25-50
	0.6/1(1.8/3)kV	JLS-1-5.2	70-120
	0.6/1(1.8/3)kV	JLS-1-5.3	150-240
	0.6/1(1.8/3)kV	JLS-1-5.4	300-400

Contact us for more info





● Power Distribution Networks: Repairing faults or extending underground LV cable runs.

● Industrial Plants: Connecting cables for machinery, motors, and lighting.

● Wind and Solar Farms: Splicing array cables or connecting to transformers.

● Commercial Buildings: Extending power cables in risers or sub-floors.

● Street Lighting and Traffic Signals: Connecting underground feeder cables.







We have successively passed ISO9001 quality system certification, ISO14001 environmental management system certification, OHS18001 occupational health and safety management system certification, CCC certification, CQC, European CE safety certification,IEC 60831-1&2:2014.
