15kV 24kV 35kV 630A European Rear Joint

Our 15kV 24kV 35kV 630A European Rear Joint (also known as a European-style cable rear connector or European-style rear bushing) is a fully insulated, fully shielded plug-in cable connection device used in medium-voltage (10-35kV) power distribution systems.

It is primarily applied in ring main units (RMUs), compact substations, and cable distribution cabinets for cable entry and exit connections. Compliant with IEC and GB standards, it features high reliability, a compact design, and long service life.

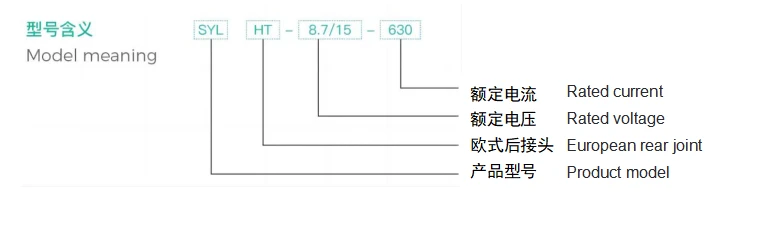

SYLHT-15/630, SYLHT-24/630, SYLHT-35/630 Cable model configuration table

12kV Cable configuration	Reference No.:	Conductor cross section(mm²)	Outer diameter of the cable insulation layer  (mm)	Cable model	Stress cone size
	SYLHT-15/630-25	25	16.6	8.7/15	A
	SYLHT-15/630-35	35	17.6	8.7/15	A
	SYLHT-15/630-50	50	19	8.7/15	A
	SYLHT-15/630-70	70	20.6	8.7/15	B
	SYLHT-15/630-95	95	22.2	8.7/15	B
	SYLHT-15/630-120	120	23.6	8.7/15	C
	SYLHT-15/630-150	150	25.2	8.7/15	C
	SYLHT-15/630-185	185	26.7	8.7/15	D
	SYLHT-15/630-240	240	29	8.7/15	D
	SYLHT-15/630-300	300	31.2	8.7/15	E
	SYLHT-15/630-400	400	34.4	8.7/15	E
	SYLHT-15/630-500	500	37.2	8.7/15	F
24kV Cable model configuration	Diameter of inner hole of stress cone(mm)	Cable core insulation diameter range		12/20(24)kV	18/30(36)kV
		Min(mm)	Max(mm)	Cable section(mm²)	Cable section(mm²)
	φ16	20	24	35-70
	φ20	24	28	95-150	35-70
	φ25	28	33	185-240	95-150
	φ30	33	38	300-400	185-240
	φ35	39	43	500	300-400
	φ40	44	50	一	500
35kV Cable model configuration	Diameter of inner hole of stress cone (mm)		Insulation diameter of cable core		26/35(40.5)kV
			Minimum(mm)	Maximum(mm)	Cable section(mm²)
	φ23		25	29.5	35-70
	φ26		30	35	70-95
	φ30		35	38	150-185
	φ34		38	42	240-300
	φ38		44	48	400-500

Pls contatc us

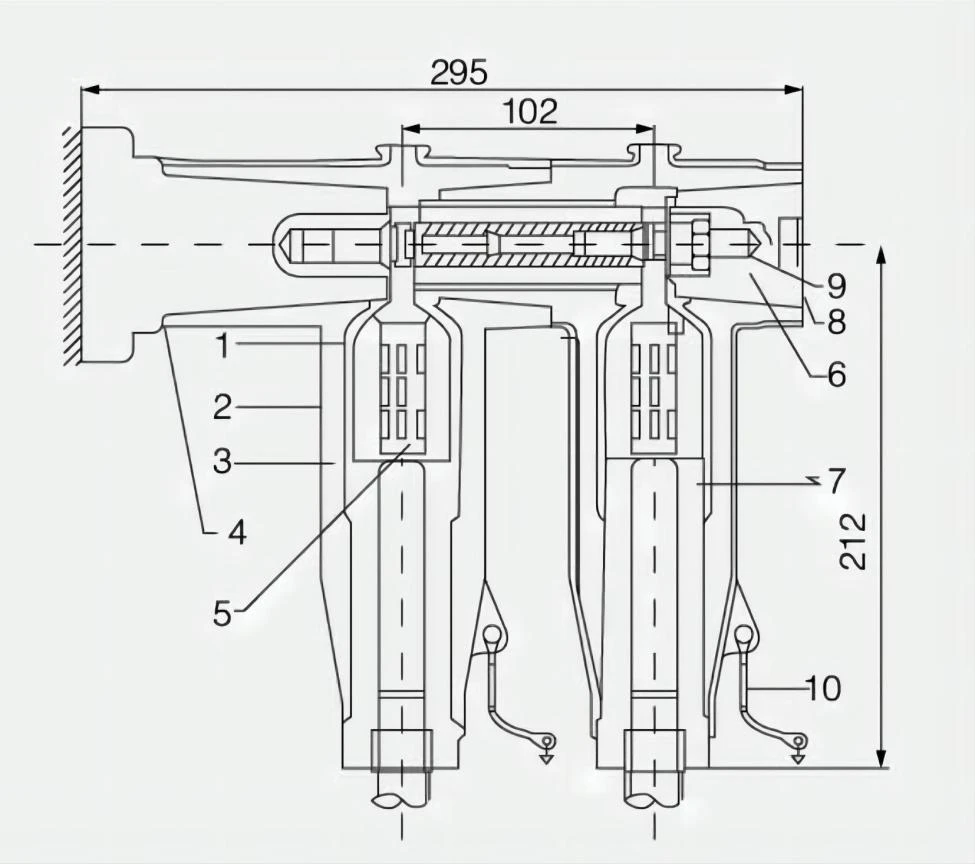

Below drawing is 15kV connector for reference:





● Optimized Shielding Design:

Inner/outer shielding with surface resistance <5000Ω

Conductive shielding layer of sufficient thickness ensures operator safety during contact

Provides full insulation, complete shielding, hermetic sealing, touch-safe operation, and superior electrical performance

● Rigorous Quality Assurance:

Each separable connector undergoes AC withstand voltage testing prior to factory shipment

● Cable Characteristics:
○ Polymer insulation (XLPE, EPR)
○ Copper/aluminum conductors
○ Equipped with semi-conductive or metallic shielding





● Ring Main Units (RMUs): Cable entry/exit connections.

● Compact Substations (European/American style): High-voltage side cable termination.

● Cable Distribution Cabinets: Multi-circuit cable branching.

● PV/Wind Power Projects: Medium-voltage collector line connections.







Jinneng Electric power technology Hubei Co.,Ltd is focused on production and manufacturing, and has been constantly improving R&D innovation capability, expanding product range and updating products function. The factory has a professional R&D team, committed to product design and process research, and innovate unceasingly. There are more than 20 excellent R&D design engineers, who can develop more than 50 new products every year to meet the needs of different markets and customer's requirements.

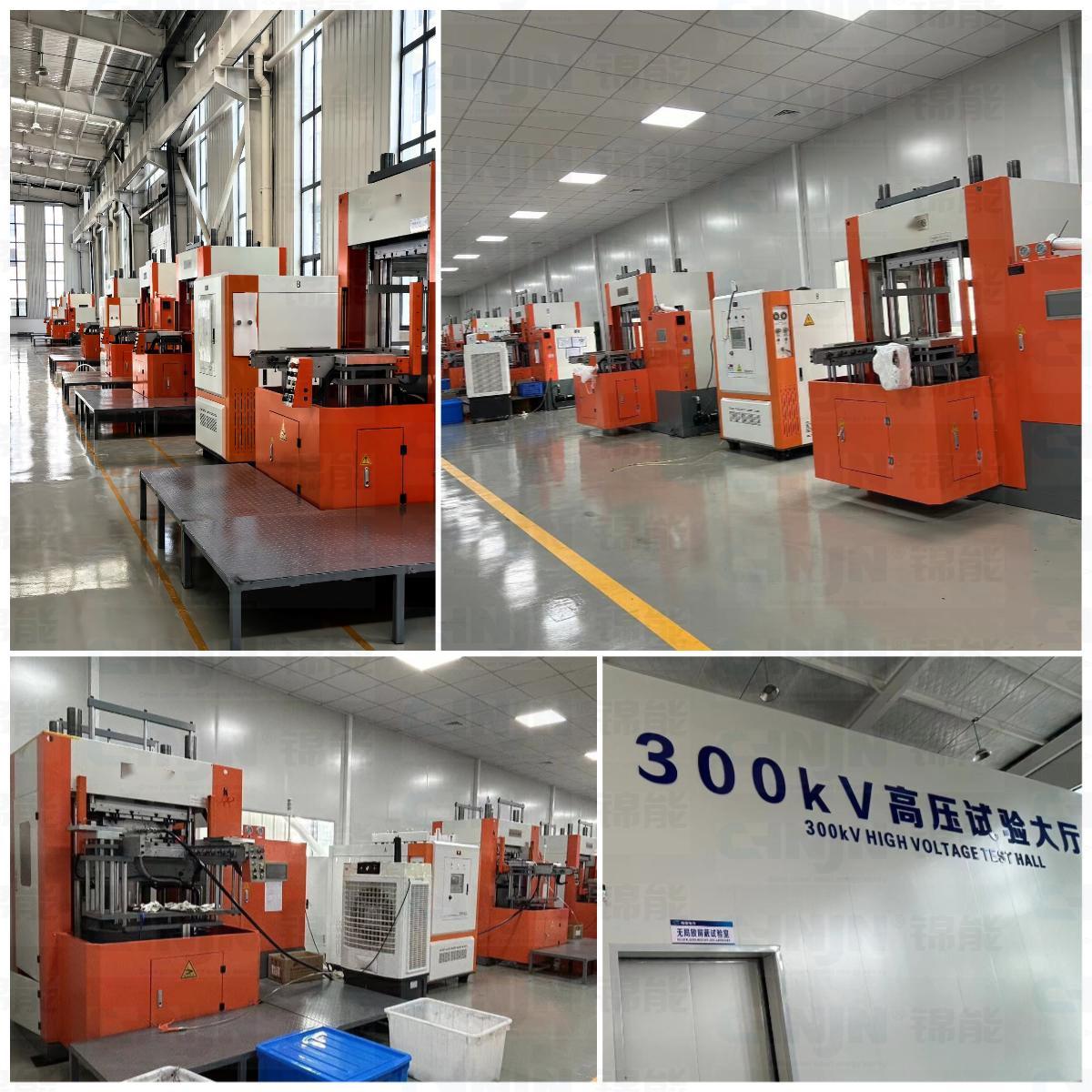

Our company have professional laboratory and full testing equipment so as to ensure the quality of products and leading position in technology. Meanwhile, we always keep up with the trend of the development of the times, pay attention to exchanges and cooperation with the same industry, and improving our technical competitiveness constantly, to provide customers with more quality products.
