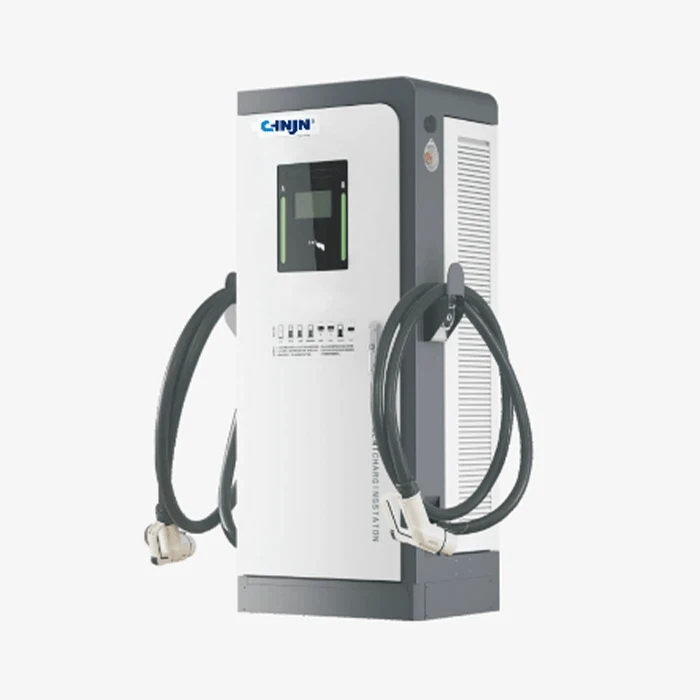

Home Electric Charger

Jinneng Home Electric Charger is engineered to serve electric vehicles equipped with onboard charging systems. Integrated with full-spectrum system protection functionalities, this Home Electric Charger delivers robust operational safety, high uptime reliability, and greatly simplified installation, commissioning and lifecycle maintenance. Jinneng Home Electric Charger supports flexible installation for a wide range of application environments, ranging from urban residential districtsand commercial shopping complexes to dedicated power service infrastructures.





✅ One-touch quick operation for effortless, streamlined charging experience

✅ Intuitive HMI (Human-Machine Interface) interaction with full intelligent charging process management

✅ Built-in high-performance 20–40kW constant power charging modules

✅ Extended wide output voltage coverage, compatible with charging requirements of diverse EV models

✅ Green & energy efficient: Ultra-low standby power draw, fully compliant with global energy conservation and low-carbon standards

✅ Modular hot-swap design, enabling fast, on-site maintenance without full shutdown

✅ Full-spectrum system-level protection for maximized operational safety and reliability

✅ Seamless compatibility with backend platform management system

✅ Modern, sleek and structured aesthetic exterior design





Category	Item	JN-EC1D240F5	JN-EC1D320F5	JN-EC1D360F5
Specification	Rated power	240KW	320KW	360KW
Charging equipment	Installation Method	Floor mounted	Floor mounted	Floor mounted
Charging equipment	Wiring method	Bottom Entry / Bottom Exit	Bottom Entry / Bottom Exit	Bottom Entry / Bottom Exit
	Dimension	750*690*1900mm	750*690*1900mm	750*690*1900mm
	Input voltage	AC380V±15%	AC380V±15%	AC380V±15%
	Input frequency	45-65Hz	45-65Hz	45-65Hz
	Output voltage	200-1000V	200-1000V	200-1000V
	Single-Gun Output Current Range	0-250A Support 300A	0-250A Support 300A	0-250A Support 300A
	Cable length	5M (per customer requirements)	5M (per customer requirements)	5M (per customer requirements)
	Metering accuracy	Level 2	Level 2	Level 2
Electrical specification	Current limit protection	≥110%	≥110%	≥110%
	Voltage Regulation Accuracy	≤±0.5%	≤±0.5%	≤±0.5%
	Current Regulation Accuracy	≤±1%	≤±1%	≤±1%
	Ripple Coefficient	≤±0.5%	≤±0.5%	≤±0.5%
	Efficiency	≥95%	≥95%	≥95%
	Power factor	≥0.99(above 50% load)	≥0.99(above 50% load)	≥0.99(above 50% load)
	Harmonic distortion THD	<5%(above 50% load)	<5%(above 50% load)	<5%(above 50% load)
Functional design	Human-machine interface	7-inch high-brightness color touchscreen	7-inch high-brightness color touchscreen	7-inch high-brightness color touchscreen
	Charging mode	Auto Full Charge/Fixed Energy/Fixed Amount /Fixed Time	Auto Full Charge/Fixed Energy/Fixed Amount /Fixed Time	Auto Full Charge/Fixed Energy/Fixed Amount /Fixed Time
	Charging method	Plug & Charge/Card Charging/QR Code Charging	Plug & Charge/Card Charging/QR Code Charging	Plug & Charge/Card Charging/QR Code Charging
	Payment method	Card Payment/QR Code Payment	Card Payment/QR Code Payment	Card Payment/QR Code Payment
	Network connection method	Ethernet/4G	Ethernet/4G	Ethernet/4G
Safety design	Compliance Standards	GB/T20234,GB/T18487,GB/T27930,NB/T33008,NB/T33002	GB/T20234,GB/T18487,GB/T27930,NB/T33008,NB/T33002	GB/T20234,GB/T18487,GB/T27930,NB/T33008,NB/T33002
	Safety function	Charging gun temperature monitoring, Overvoltage Protection, Undervoltage Protection,Overload Protection, Short-circuit Protection,Grounding Protection, Overtemperature Protection,Low-temperature Protection,Insulation Monitoring Protection,Reverse Polarity Protection,Lightning Protection,Emergency Stop Protection, Leakage Protection	Charging gun temperature monitoring, Overvoltage Protection, Undervoltage Protection,Overload Protection, Short-circuit Protection,Grounding Protection, Overtemperature Protection,Low-temperature Protection,Insulation Monitoring Protection,Reverse Polarity Protection,Lightning Protection,Emergency Stop Protection, Leakage Protection	Charging gun temperature monitoring, Overvoltage Protection, Undervoltage Protection,Overload Protection, Short-circuit Protection,Grounding Protection, Overtemperature Protection,Low-temperature Protection,Insulation Monitoring Protection,Reverse Polarity Protection,Lightning Protection,Emergency Stop Protection, Leakage Protection
Environmental specification	Working temperature	-25℃~+50℃	-25℃~+50℃	-25℃~+50℃
	Working humidity	5%-95% non-condensing	5%-95% non-condensing	5%-95% non-condensing
	Working altitude	<2000m	<2000m	<2000m
	Protection rating	IP54	IP54	IP54
	Cooling method	Aircooling	Aircooling	Aircooling
	Noise control	≤60dB	≤60dB	≤60dB
	MTBF	100,000 hours	100,000 hours	100,000 hours









Scenario Pain Points	Product Targeted Advantages
Peak hour charging congestion	Ultra-high power & high current output for rapid top-up charging
Commercial operation & metering settlement	Class-leading metering accuracy, flexible multi-rate schemes, cloud-enabled remote management
24/7 high-load intensive operation	≥95% operational efficiency, 100,000-hour rated MTBF, ultra-low failure rate
Harsh and complex outdoor operating environments	Full-spectrum safety safeguards, IP54 ingress protection, wide extreme temperature & humidity adaptability
