Understanding an Electrical Substation: Primary vs. Secondary Equipment Explained

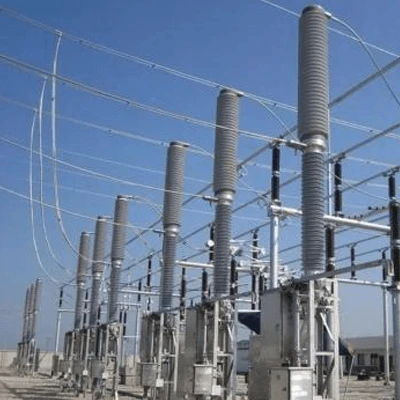

To non-professionals, an electrical substation often looks like an intricate "iron forest"-fascinating yet unfamiliar. To meet the complex demands of power transmission and distribution, substations rely on a vast array of electrical equipment. These devices perform crucial functions, including power conversion, monitoring, measurement, regulation, protection, circuit switching, and shutdown.

Depending on their operational roles, substation equipment is broadly classified into two main categories: primary equipment and secondary equipment.

I. What is Primary Equipment in a Substation?

Primary equipment consists of the high-voltage devices that directly generate, transform, transmit, distribute, and consume electric power. Because they handle high currents and voltages, they form the backbone of the power grid.

The main primary equipment in a substation includes transformers, circuit breakers, disconnectors, voltage and current transformers, capacitors, reactors, surge arresters, and busbars.

Classification by Function:

Power Conversion Equipment: Includes power transformers for voltage transformation and power delivery, voltage transformers (PTs) that step down high voltages to safe, measurable levels, and current transformers (CTs) that convert high currents into smaller, manageable currents.

Switchgear (Circuit Making & Breaking): Devices used to connect or isolate circuits, such as circuit breakers, load switches, fuses, and disconnectors (isolator switches).

Protective Electrical Devices: Equipment designed to safeguard the system, such as reactors for limiting short-circuit currents and surge arresters for overvoltage and lightning protection.

Current-Carrying Conductors: Flexible and rigid conductors, busbars, and power cables used to transport electricity safely through the substation.

Earthing Devices: Consists of metal earthing electrodes buried underground and interconnected to form an earthing grid, providing essential working earthing for power system neutral points and protective earthing for safety.

II. What is Secondary Equipment in a Substation?

While primary equipment handles the high-voltage power flow, secondary equipment acts as the "brain and nervous system" of the substation. These auxiliary devices measure, control, monitor, and protect the primary equipment, providing essential operational data and commands for operators and maintenance staff.

Key Components of Secondary Equipment:

Instrument Transformers: Specifically voltage transformers and current transformers, which step down high primary voltages and currents so measuring meters and protection relays can handle them safely.

Measuring Instruments: Devices like voltmeters, ammeters, wattmeters, and power factor meters used to continuously monitor the operating parameters of primary circuits.

Relay Protection & Automatic Devices: Intelligent systems that instantly detect electrical faults or abnormal operating conditions, automatically tripping faulty circuits or executing regulation protocols to prevent widespread outages.

DC Power Equipment: Includes DC generators, storage batteries, and rectifiers that supply reliable backup power for protection systems, control operations, signal circuits, and emergency lighting.

Signal Equipment & Control Cables: Signal hardware that alerts operators to changing statuses or alarms, supported by specialized control cables used for complex interconnections among secondary devices.
