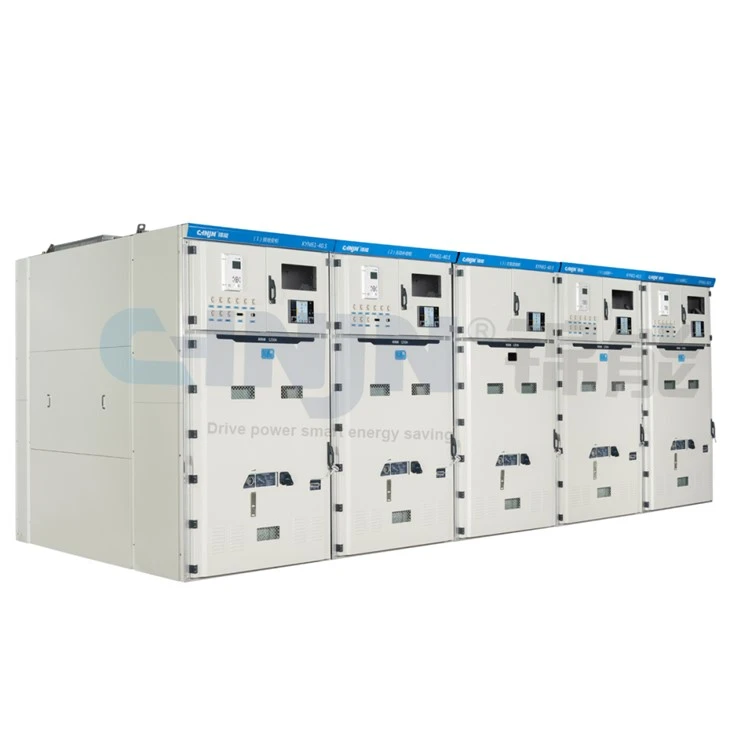

High Voltage Withdrawable Metal-enclosed Switchgear

Multi-Compartment Internal Arc Protection: Engineered with a robust, metal-clad (armored) design, the switchgear is divided into fully segregated, independent compartments: the circuit breaker chamber, busbar chamber, cable chamber, and low-voltage/instrument compartment. This advanced design ensures internal arc fault compartmentalization-if an arc fault occurs within the circuit breaker chamber, it is safely contained and prevented from propagating to other sections. This minimizes equipment damage and guarantees absolute operator safety.

High Ingress Protection (IP Rating): The enclosure features an IP4X protection rating, while the internal partitions between compartments maintain an IP2X rating. This strictly prevents the ingress of foreign objects and completely eliminates the risk of accidental contact with energized or moving parts during routine operation and maintenance.

Comprehensive "Five-Prevention" Safety Interlocks: Equipped with robust mechanical and electrical interlocking mechanisms, the system reliably eliminates operational errors and drastically reduces power distribution hazards by preventing:

• Inadvertent opening or closing of circuit breakers.

• Operation of disconnect switches under load conditions.

• Grounding switch closure on energized lines (live grounding).

• Energizing the system while grounding switches are engaged.

• Unauthorized or accidental entry into live high-voltage compartments.

High Voltage & Superior Current-Carrying Capacity: Engineered with a rated voltage of 40.5kV (optimized for 35kV power grids), this system seamlessly fulfills the medium-to-high voltage distribution and control requirements of utility grids and heavy industrial complexes. It supports a rated continuous current of up to 3150A (or higher upon custom configuration) and delivers a rated short-circuit breaking current of 31.5kA or above. This guarantees rapid fault clearance during short circuits, protecting upstream and downstream infrastructure.

Premium Insulation System: Critical internal insulation components are crafted from high-grade epoxy resin and treated with advanced manufacturing techniques. This delivers exceptional dielectric strength, superior aging resistance, and high creepage resistance, ensuring long-term, arc-free operation in high-voltage environments and preventing insulation breakdowns.

Withdrawable Handcart Design: Primary switching components (such as circuit breakers) are mounted on movable handcarts (trolleys). Utilizing a dedicated racking mechanism, the handcarts can be effortlessly racked in or racked out for rapid inspection or replacement. During servicing, a faulty unit can be completely rolled out to a safe maintenance zone without interrupting adjacent circuits, significantly reducing system downtime and boosting power supply reliability.

Intuitive User Interface: The front panel features high-visibility status indicators and mimic diagrams (including circuit breaker open/close states and handcart test/service position indicators), giving operators instantaneous visual confirmation of system status. Control switches are logically arranged, require minimal operating force, and follow standardized sequences to reduce operator error.

Ergonomic Maintenance Access: The wide-opening compartment doors and spacious internal layout provide field engineers with ample room for cabling, commissioning, and on-site testing.

Premium Industrial Finish: The switchgear enclosure undergoes a premium electrostatic powder coating process, providing excellent anti-corrosion protection, durability, and a clean, modern aesthetic that enhances the profile of any substation installation site.
