TUV Certified Reactive Power Compensation Capacitor

TUV certified Reactive Power Compensation capacitor rate voltage is 440V and 525V, 50Hz,3-Phase,delta connection. The capacitor & foil-wound reactor unit improves system power factor from 0.60~0.85 up to 0.92~0.98, complying with IEC regulations.The products were tested in accordance with the IEC 60831-1&2:2014 standard. TÜV Rheinland issued the certification and test reports based on the testing conducted at the Suzhou Electrical Apparatus Science Research Institute, which included both routine and type tests (including aging test).

This cylindrical power capacitor from Jinneng is among the top-tier products in the high-end category among Chinese counterparts, with grid-level quality. It achieves the highest standards in key indicators such as insulation strength, aging life, low loss, capacity accuracy, and safety. Its overall performance is superior than most manufacturers, and it is at the same level as or even stronger than some of the world brands.

We have finished extreme accelerated aging test in our lab: The BKMJ525-15-3 sample was pre-aged 72h under 1.4× rated voltage, then another 72h extreme aging at 90℃ ambient with 1.5× rated voltage & 2.1× rated current. Throughout testing, ambient & capacitor temperature kept a steady gap of around 5℃; the capacitor's peak surface temperature stabilized at 99.9℃ without abnormal fluctuation. After total 144 hours of combined aging, capacitance attenuation was merely 0.018% and no any outer damage occurred. (The original test purpose was to observe capacitor failure status under extreme overload.) This fully demonstrates the capacitor's superior design, high-quality material selection, and precise manufacturing craftsmanship.

B-Shunt, K-Epoxy resin, MJ-metallized polypropylene film

Brand Detail Images of Reactive Power Compensation Capacitor

Equipped with efficient discharge resistor & auto pressure relief cap, easy cabinet mounting and export-safe packaging

External discharge resistor

Equipped with separate external discharge resistor for superior heat dissipation, it rapidly drains residual voltage to guarantee maintenance safety.

Expansion lid

Explosion-proof expandable top cover automatically releases internal pressure under overheating conditions, cutting capacitor explosion risk by half.

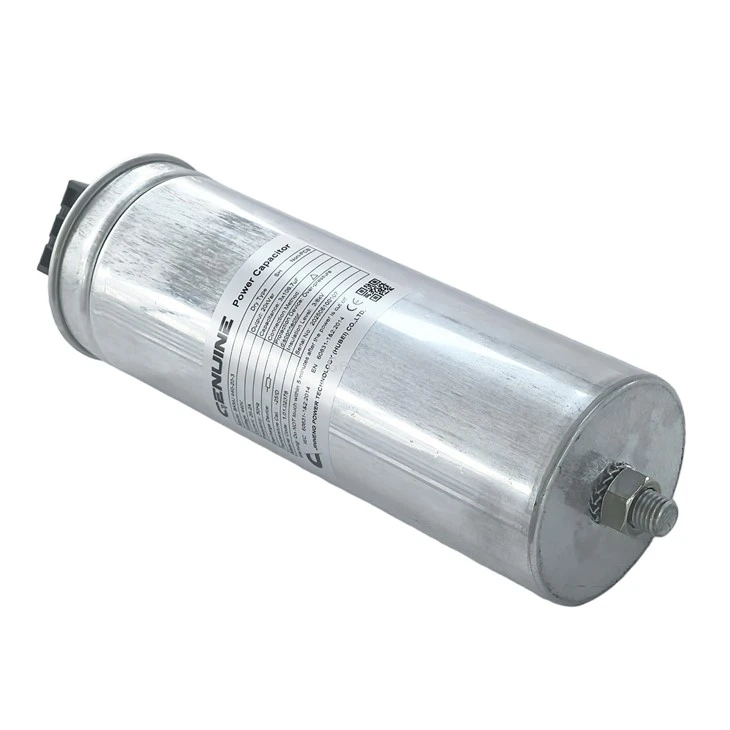

Bottom Bolts&Nuts

Integrated bottom bolt design enables quick and stable installation inside distribution cabinets for convenient assembly, M12 bolt is commonly used.



Packages

Compartmentalized carton is made with thickened corrugated cardboard, delivering reliable cushion protection, ideal for export transportation and long-term storage.

BKMJ 440V / 525V TUV Certified Reactive Power Compensation Capacitor:

• Report No.: CN25NIQL
• Standard: IEC 60831-1&2:2014, all routine tests and type tests were fully passed.
• Test Institution: Suzhou Electrical Apparatus Science Research Institute; Certified by TÜV Rheinland.
• Aging Test: 1.25× rated voltage for 750h + 1,000 charge-discharge cycles + additional 750h aging (Total: 1500h).
• Insulation Performance: 6/15kV pole-to-enclosure insulation, IEC standard is 3/8kV
• Dissipation Factor tanδ: 0.0003~0.0011 only, far below the standard limit value, top energy-saving level.
• Discharge, tightness, thermal stability, self-healing and destruction tests: All items qualified.
• The capacity change after self-healing is ≤ 0.08%, industry standard of ≤ 1%; almost no attenuation, at the top level of the industry.
• Capacity deviation: -0.5% to +1.8%. National standard: -5% to +10%. → Top precision in China.

⚠️Disclaimer⚠️:

The capacitors submitted for testing have passed IEC certification according to high standards. Unless customers specify special requirements, we do not guarantee that all capacitors are manufactured or delivered to IEC standards or above.

TUV certified Reactive Power Compensation capacitor 440V & 525V

Petrochemical plants

Refining units, chemical synthesis units, chemical & oil tank yards, site utility systems, central control facilities

natural gas storage & transportation stations

Pipeline compressor stations, city gas regulating & storage stations, LNG terminals & filling stations, CNG refueling stations, underground gas storage facilities

public facilities requiring high operational reliability

Municipal water, heating & power substations, airport & rail transit hubs, key hospital equipment rooms, IDC & telecom data centers, municipal emergency facilities

high-load production workshops

Metallurgy smelting & rolling workshops, building material kiln workshops, automobile manufacturing workshops, pulp & papermaking workshops, new energy & semiconductor workshops

Genuine power TUV Certified Reactive Power Compensation Capacitor, covering both 440V and 525V full series, have successfully passed the rigorous testing by TÜV Rheinland in accordance with the IEC 60831-1&2:2014 standard and obtained the certification. This fully demonstrates that our product quality, safety, and reliability meet the highest international standards, serving as a definitive testament to the company's technical prowess and commitment to superior quality.
