EV Charging Pile
✅ Versatile charging modes
✅ Optional 4.3-inch vivid color touch display
✅ Multi-scenario payment & start options
✅ Built-in backend system support for easy data tracking, remote control and bulk site management
✅ Factory-integrated leakage protection,
- Product Introduction
Jinneng EV charging piles are purpose-built, user-friendly charging solutions for electric vehicles with onboard chargers.
Engineered with full-spectrum system protection, Jinneng EV charging piles deliver exceptional operational safety and long-term reliability. They feature quick installation, intuitive operation and low maintenance, making them ideal for both residential and commercial deployment.
Jinneng EV charging piles are packed with flexible smart charging modes: auto top-off,custom charge quota and adjustable fixed power levels to match all your needs. An optional 4.3-inch touchscreen offers a clean, beginner-friendly interface for effortless operation.

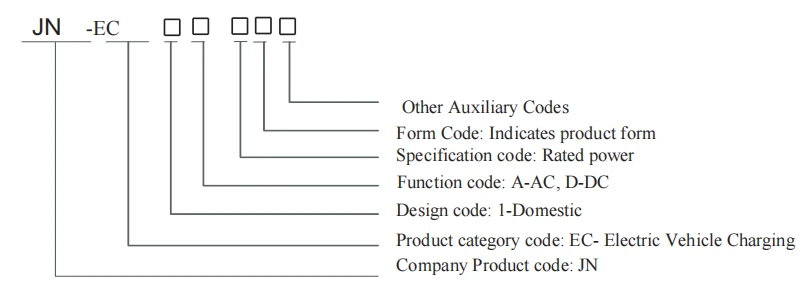

Model Number Explaination
Key Functional Highlights
✅ Versatile charging modes: auto top-off, off-peak scheduled charge, custom charge quota & adjustable fixed power levels
✅ Optional 4.3-inch vivid color touch display, ultra-simple to navigate for all users
✅ Multi-scenario payment & start options: QR code scan, card paid billing, one-card start/stop
✅ Built-in backend system support for easy data tracking, remote control and bulk site management
✅ Factory-integrated independent leakage protection, delivering all-round reliable electrical safety
Products Description
| Category | Parameter | JN-EC1A7W2,JN-EC1A7C2 |
|---|---|---|
| Charging equipment | Product Specification | 7KW |
| Input voltage | AC220V±15% | |
| Output voltage | AC220V±15% | |
| Installation method | Wall-mounted/Column-mounted | |
| Max output current | 32A | |
| Wiring method | Bottom Entry / Bottom Exit | |
| Input frequency | 50Hz±10% | |
| Cable length | 3.5m/5m/7m/Other lengths (per customer request) | |
| Metering accuracy | Level 2 | |
| Housing material | Plastic housing | |
| Electrical specification | Current limit protection | ≥110% |
| Voltage Regulation Accuracy | / | |
| Current Regulation Accuracy | / | |
| Ripple Coefficient | / | |
| Efficiency | / | |
| Power factor | / | |
| Harmonic distortion THD | / | |
| Functional design | Human-Machine Interface | 4.3-inch LCD screen(optional), LED indicator light |
| CI | Ethernet/4G | |
| Start method | Plug and Play, Card Scan, or Card Payment | |
| Safety design | Compliance Standards | GB/T20234,GB/T18487,NB/T33008,NB/T33002 |
| Safety function | Overvoltage Protection, Undervoltage Protection, Overload Protection, Short-Circuit Protection, Grounding Protection, Overtemperature Protection, Low-Temperature Protection, Lightning Protection | |
| Environmental specification | Working temperature | -20℃~+50℃ |
| Working humidity | 5%~95% non-condensing | |
| Working altitude | <2000m | |
| Protection rating | Ip54 | |
| Cooling method | Natural air cooling | |
| Noise control | ≤60dB | |
| MTBF | 100,000 hours |
Application Scenarios
Quality Assurance
- Implement strict raw material inspection and control to eliminate potential quality risks at the source.
- Equipped with advanced production facilities to deliver consistent and reliable product quality.
- Conduct high-standard full-range product testing to guarantee stable and efficient operation.
- Adopt standardized management systems to ensure seamless and orderly production workflows.
- Backed by a professional R&D team, we pursue continuous technological innovation to meet diverse market demands.
